Impala/Caprice Installation Page 12

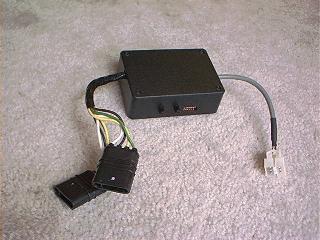

control box

Step 45

Now install the control box. The control box shown has the older style connectors, yours may have the new white plastic connectors.

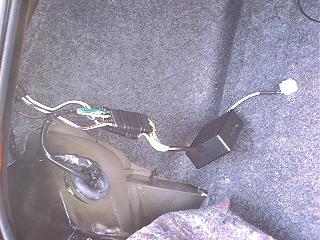

connecting control box to tail lights

Step 46

Connect the tail light plugs to the control box, remember to connect blue to blue and red to red.

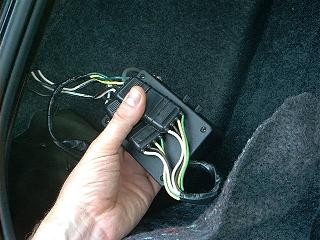

arranging wire prior to stuffing control box

Step 47

Wrap the connectors around the top of the control box as shown.

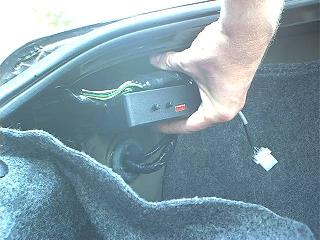

stuffing control box

Step 48

Stuff the control box back into this corner as shown, making sure the tail light connectors remain on top of the control box.
